Resaltar:
prefabricated steel warehouse
, anti-corrosion steel structure building
, quick erection logistics storage
Estándar: |
Los requisitos de la norma ISO para la certificación de los productos de la UE deben cumplirse en el |
Correa: |
C.Z Acero en forma de canal,C/Z Acero galvanizado ((Q235) |
Tratamiento superficial: |
Galvanizado en caliente, limpieza por estallido, estallido o pintura con bolas, galvanizado |
Ventana: |
Algodón de aluminio,ventana de PVC,acero plástico o aleación de aluminio |
Techumbre: |
Panel de sándwich, hoja de acero simple, panel de sándwich de EPS, PU, lana de roca |
Marco principal: |
H vigas y columnas, vigas sólidas de acero en forma de H |
Haz: |
H Acero disponible, tubos de acero, acero de ángulo, soldado/rollado en caliente |
Puerta: |
Puertas correderas, puertas rodantes de persianas |
Personalización: |
Disponible |
Número de modelo: |
Se aplicará el procedimiento siguiente: |
Nivel de granallado: |
Sa 2.5 |
Estructura principal: |
Marco de la estructura de acero |
Viga de amarre: |
Tubo redondo o tubo cuadrado |
Tiempo de muestra: |
7 días si tenemos piezas estándar |
Color: |
Aprobación aduanera |
PRUEBA de los terceros: |
SGS, BV, ITS |
Tipo de base: |
Concreto y acero |
Espesor: |
5-28m m |
resistencia al fuego: |
Materiales resistentes al fuego utilizados. |
Construido rápidamente: |
instalación fácil |
Ancho de banda: |
7-28m m |
Vida útil: |
20-50 años |
Tipo de conexión: |
Atornillado, soldado |

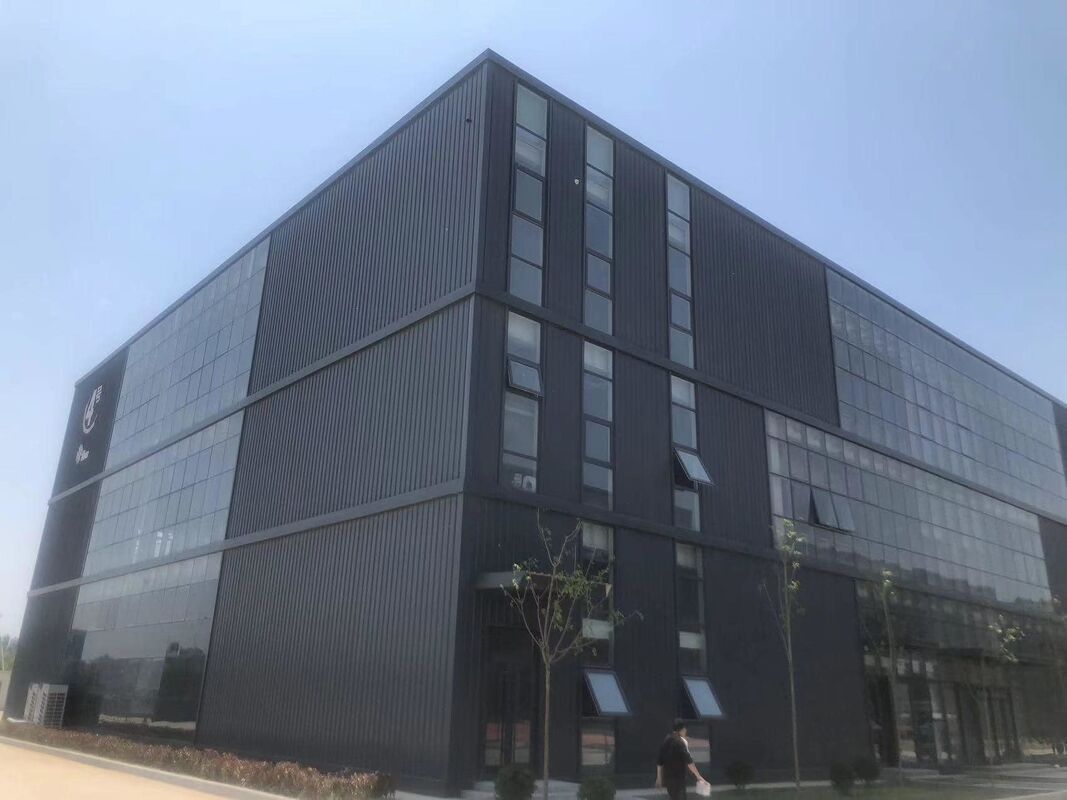

| Prefabricated Steel Structure Building Description: QINGDAO KXD STEEL STRUCTURE CO.,LTD |
Our steel structure products cover prefabricated workshops, warehouses, livestock buildings, pipe trusses and customized steel frames. Adopting high-quality steel materials and precise fabrication technology, all structures feature high strength, strong stability, anti-corrosion performance and fast installation. We provide one-stop customized steel building solutions for global construction and engineering projects.
| Specifications |
| 1)Size(m): |
Width * Length * Height; |
| 2)Type: |
Single slope, double slope, Multi-slope; |
| Single span, double-span, Multi-span; |
| Single-floor, double-floor, Multi-floor; |
| 3) Base: |
steel foundation bolts |
| 4) Steel frame: |
Material Q345(S355JR)(Gr50)or Q235(S235JR) steel; |
| Straight cross-section or Variable cross-section; |
| steel welded H section, painted or galvanized. |
| 5) Bracing: |
X-type, V-type, or other type bracing made from angle, round bar, etc ; |
| 6) Wall & Roof Purlin: |
C section channel or Z section channel ,Size from C80~C300; Z100~Z300; |
| 7) Roof & wall cladding |
Single color corrugated steel sheet 0.326~0.7mm thickness; |
| Sandwich panel with EPS, ROCK WOOL, GLASS WOOL, PU, etc. insulation, thickness around 50mm 75mm, 100mm, 120mm 150mm 200mm; |
| Recommend coating PVDF SMP HDP PE |
| 8)Window: |
UPVC/PVC or Aluminum Alloy window frame with glass. |
| 9)Door: |
Exterior door: Sliding or Roller shutter door. |
| Internal door:50mm thickness EPS sandwich panel with an aluminum alloy door frame |
| 10) Gutter material: |
Color steel sheet, galvanized steel or stainless steel; |
| 11)Rainspout: |
PVC pipe |
| 12)Connection |
high-strength bolts, intensive bolt, and self-drilling screws. |
| 13)Accessories: |
Skylight panel, Ventilation, Fasteners etc |
| 14)Surface process: |
Shot blasting Sa2.5; Two layers of Anti-rust Painting or galvanized |
| 15) Packing: |
Main steel frame without packing load in 40' GP, roof and wall panel load in 40' HQ |
Product Features
- High Strength: Engineered to support colossal weights, guaranteeing unwavering structural stability.
- Durability: Built to endure, our structures boast an impressive lifespan, withstanding wear and tear over time.
- Lightweight: Facilitates effortless transportation and swift installation.
- Quick Assembly: Prefabricated components are meticulously crafted for rapid construction and seamless assembly.
- Large span: Effortlessly bridges expansive spaces, minimizing the necessity for multiple interim support structures.
- Versatility: Perfectly adaptable, catering to a rich variety of architectural blueprints.
- Cost-Effective: Contributes to substantial savings in both long-term aintenance and upfront construction costs.
- Eco-Friendly: Constructed from recyclable steel, our products champion environmental sustainability and reduced ecological impact
These Prefabricated Steel buildings are easy to assemble, energy efficient, attractive, economical over time, and can be shipped in as little as 5 weeks. Our Engineers and staff are always on standby to assist with complex projects.
Our steel structure building has a flexible layout, has low foundation cost, and can be designed as per the buyer's requirements
1. Location (where will it be built?) Which country? Which city?
2. Size: Length * width * Eve height _______ mm * _______ mm * _______ mm
3. wind load (maximum. Wind speed) _____ kn/m2, _____ km/h, _____ m/s
4. snow load (maximum Snow height) _____ kn/m2, _____ mm, temperature range?
5. Anti-earthquake _____ level
6. Brick wall needed or not? If yes, is it 1.2m high or 1.5m high? or other?
7. thermal insulation. If yes, EPS, fiberglass wool, rock wool, and PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8. Door quantity&size _____ units, _____ (width) mm * _____ (height) mm
9. window quantity&size _____ units, _____ (width) mm * _____ (height) mm
10. crane needed or not If yes, _____ units, max. Lifting weight____tons; Max. Lifting height _____m
Product Parameters
Main steel structure frame :
Material: Weld H beam or hot rolled H beam etc
Grade:Q355 (S355JR)
Surface: Hot dip Galvanized zinc coated or Anti-rust paint rich-zinc epoxy paint etc
Usage: Make up the main steel structure frame
|
Strut (Tie beam) on eave and ridge:
Material: Round pipe or square tube etc
Grade:Q235 (S235JR)
Surface: Hot dip Galvanized zinc coat or Anti-rust paint rich-zinc epoxy paint etc
Usage: Avoid the main steel structure frame shake in the length direction
X brace for roof and wall:
Material: Steel Round bar or angle steel etc
Grade:Q235 (S235JR)
Surface: Hot dip Galvanized zinc coat or Anti-rust paint rich-zinc epoxy paint etc
Usage: Make the whole structure stable, tie the whole building into one
● Windows and Doors
Plastic Steel Window/Aluminum-alloy Window; Sliding Door/Folding Door.
● Other Options:
The gutter, Downpipe, Transparent sheet, Ventilator, and Bridge Crane will be fitted according to the client’s requirements.
Our company can design, fabricate, load, and erect steel structure buildings according to clients’ needs.
1. Make suitable design plans and detailed construction drawings of steel structure buildings according to the land layout area and usage of buildings by Tekla, PKPM, and 3D3S.
2. Steel structure buildings consultation service.
3. Budget offers of building for contractors.
4. Transportation & delivery as your need.
5. Fabrication, shot blasting & painting as different requests.
6. Erection & installation of steel structure building. Our technicians and skilled workers can be on-site to guide or install the building as needed
Why Choose KXD Steel Structure Building?
1. One-stop service:
Total solution for projects; 3D model design; design drawing and construction drawing; online technical support; after-sales service: return and replacement.
2. Well-equipped factory:
Our own factory-patented packaging and convenient transportation save you from worries.
3. High-quality products:
Our own professional research & development team and the QC team guarantee that our customers will receive products with perfect welding and accurate dimensions.
4. Rich experience:
Our products have been exported to America, Russia, Saudi Arabia, Canada, Romania, Sri Lanka, Malawi, the Philippines, Greece, South Africa, and so on.
5. Constantly develop:
We have been devoted to the research & development of steel structure buildings. And we constantly renovate technology to improve the wind- and rain-resistance performance of the products. So their lifespan can be enlarged and it helps accomplish the most cost-effective effect for our customers.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturing factory, located in Qingdao City, near Qingdao Port. We have a total of 3 workshops from steel structures to wall and roof sheets.
Q: How about your quality control?
A: We have certificates ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, and loading to ensure no quality defects.
Q: Is third-party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirements.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to the order quantity, partial shipment is allowed for big orders.
Q: What about the installation?
A: We'll provide the detailed installation drawing, and supervisors guiding installation are available. We can do turnkey jobs for some kinds of projects.
Q: How to ensure the product you supply is what we want exactly?
A: The sales and engineering team will provide you with a suitable solution according to your requirements before placing an order. Proposal drawings, Shop drawings, 3D drawings, Materials photos, and Finished projects photos are available, which will help you understand the solution we provided deeply.
