Resaltar:
automatic feeding system for broilers
, automatic feeding system for layers
, broilers layers Automatic Feeding System
nombre: |
Equipo para aves de corral |
Material de la sartén de alimentación: |
Las demás |
El color: |
Naranja, rojo, amarillo o personalizado |
silo: |
Galvanizado |
Operación: |
Automático |
Distancia de todo: |
3m/3pan o 3m/4pan |
el diámetro de la bandeja de alimentación: |
360m m |
Sistema de pezones: |
16 pezones/4 m/unidad |
Los ventiladores: |
36' cono, 50' cono o personalizado |
cojín de enfriamiento: |
1500*600*150 o personalizado |
Control del medio ambiente: |
Incluye controlador climático, sensor de temperatura, sensor de humedad, etc. |
Material de las tuberías: |
Acero galvanizado caliente |
Iluminación: |
Bulbo de ahorro de energía LED apagable |
Sistema de calefacción: |
Aceite como combustible |
piso del listón: |
Plastico de PP |
Otros accesorios: |
Proporcionado |

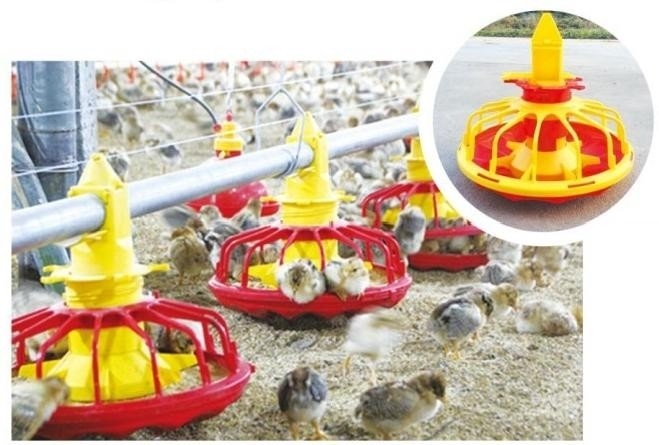

Feed Pan for Broilers, Automatic Feed Line of Steel Poultry House
Feed Pan Details
|
Condition
|
New
|
Name
|
Broiler Pan Feeder
|
|
Warranty
|
1 Year
|
Application
|
Poultry Farm Chicken Feeding
|
|
key Sell Points
|
Competitive Price& High Quality
|
Weight
|
0.9 KG
|
|
Place of Origin
|
Shandong, China
|
Capacity
|
15-20 Broiler/ Pan
|
|
Brand Name
|
KXD
|
Operation
|
Full-automatic
|
|
Material
|
Plastic
|
Installation
|
Support Online Installing& on-site installation
|
|
Package
|
Carton
|
Feed line
|
4Pan/3M
|
Introduction of Feeding System
Pan feeding system consists of a driving device,a hopper,a conveying pipe, an auger,trays,a suspension lifting device,an anti perching device and a feed sensor.The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Other Equipment of Feeding System
Sensor: IFM sensor from Germany:use for induct feeder pan material level.
Auger: Helical spring auger from South Africa,feeding capacity:450kg/h, dia:36#,49#,63#,75#,90#, also can customize.
Motor: Taiwan/taly famous high-quality special driving reduction motor, protection level:IP55,aluminum alloy frame,good radiating.
Hanging System: winch,pulley,S hook,steel wire and so on. Max lifting weight:1600kg
Feed Pan: 360°rotate avoid chicken get hurt. 14 grills designed to ensure easy access and featuring a special spill proof edge.
About Us
All of our KXD steel structure are ISO 9001-2015 certified. Any third-party inspection will be accepted, such as SGS, BV, TUV etc. We also welcome OEM and ODM orders. So far, we have exported to more than 1,500 projects over 130 countries and regions around the world and accumulated rich experience in the design, fabrication and supply of steel buildings, as well as the erection of steel buildings, architectural materials, electrical systems .You can talk to our customer service center about your sourcing requirements.
Our Team
KXD has a professional design team with more than 10 R&D personnel. More than 80% of them have a bachelor's degree or above from domestic professional colleges, and each person has more than 5 years of work experience. They have rich experience in single product design and EPC overall design.
